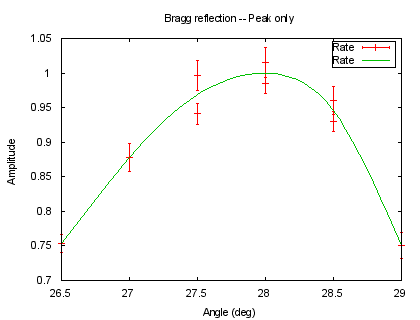

# # $Id: mgr.dem,v 1.8 2004/01/13 07:01:10 sfeam Exp $ # print "Watch some cubic splines" set samples 50 set xlabel "Angle (deg)" set ylabel "Amplitude" set key box set title "Bragg reflection -- Peak only" plot "big_peak.dat" title "Rate" with errorbars, \ "" smooth csplines t "Rate"Click here for minimal script to generate this plot

set bars small replot set bars large #Click here for minimal script to generate this plot

set samples 300 set xlabel "Time (sec)" set ylabel "Rate" set title "Ag 108 decay data" plot "silver.dat" t "experimental" w errorb, \ "" smooth csplines t "cubic smooth" # error is column 3; weight larger errors less # start with rel error = 1/($3/$2)Click here for minimal script to generate this plot

S=1 plot "silver.dat" t "experimental" w errorb,\ "" u 1:2:(S*$2/$3) smooth acsplines t "acspline Y/Z"Click here for minimal script to generate this plot

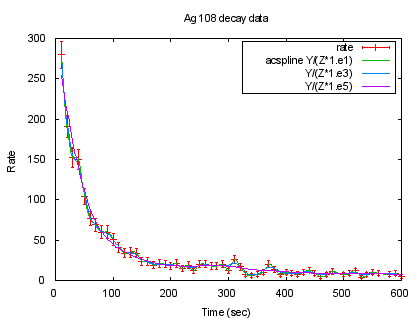

plot "silver.dat" t "rate" w errorb,\ "" u 1:2:($2/($3*1.e1)) sm acs t "acspline Y/(Z*1.e1)",\ "" u 1:2:($2/($3*1.e3)) sm acs t " Y/(Z*1.e3)",\ "" u 1:2:($2/($3*1.e5)) sm acs t " Y/(Z*1.e5)"Click here for minimal script to generate this plot

set logscale y replotClick here for minimal script to generate this plot

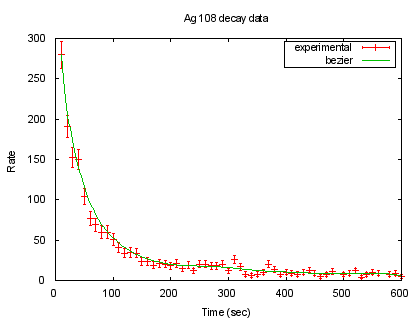

unset logscale y plot "silver.dat" t "experimental" w errorb,\ "" smooth sbezier t "bezier"Click here for minimal script to generate this plot

set logscale y plot "silver.dat" t "rate" w errorb, \ "" smooth sbezier t "bezier" #Click here for minimal script to generate this plot

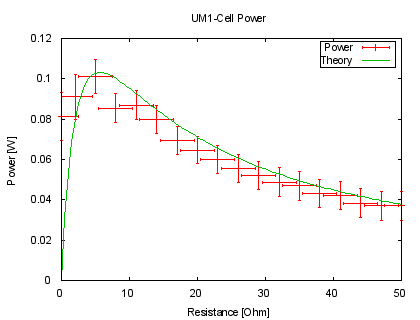

set samples 100 unset logscale set xlabel "Resistance [Ohm]" set ylabel "Power [W]" set title "UM1-Cell Power" n(x)=1.53**2*x/(5.67+x)**2 plot [0:50] "battery.dat" t "Power" with xyerrorbars, n(x) t "Theory" w linesClick here for minimal script to generate this plot

plot [0:50] "battery.dat" t "Power" with boxxy, n(x) t "Theory" w linesClick here for minimal script to generate this plot

plot [0:50] "battery.dat" u 1:2:3 t "Power" w xerr, n(x) t "Theory" w linesClick here for minimal script to generate this plot

plot [0:50] "battery.dat" u 1:2:4 t "Power" w yerr, n(x) t "Theory" w linesClick here for minimal script to generate this plot

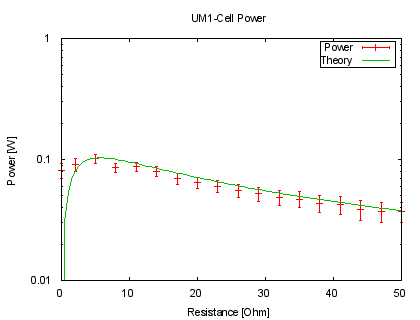

set logscale y plot [0:50] "battery.dat" u 1:2:4 t "Power" w yerr, n(x) t "Theory" w linesClick here for minimal script to generate this plot

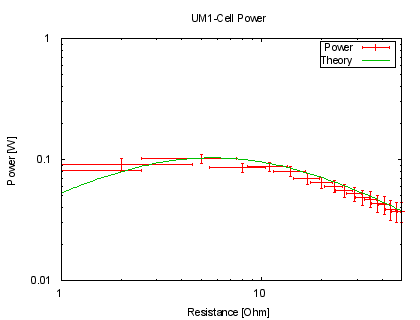

set logscale xy plot [1:50] "battery.dat" t "Power" w xyerr, n(x) t "Theory" w linesClick here for minimal script to generate this plot

unset logscale set bars small plot [0:50] "battery.dat" t "Power" with xyerrorbars, n(x) t "Theory" w linesClick here for minimal script to generate this plot

plot [0:50] "battery.dat" u 1:2:3 t "Power" w xerr, n(x) t "Theory" w linesClick here for minimal script to generate this plot

plot [0:50] "battery.dat" u 1:2:4 t "Power" w yerr, n(x) t "Theory" w lines reset
